Solar Aluminium Frames

The demand for green energy continues to grow, and so does innovation in the design of solar panels and mounting products. Work closely with your reliable partner to produce solar panel mounting systems that keep up with industry trends and will last for years.

Your reliable supplier can keep production costs low by working with you on inventory management, scaling up on projects, creating customer designs, and more.

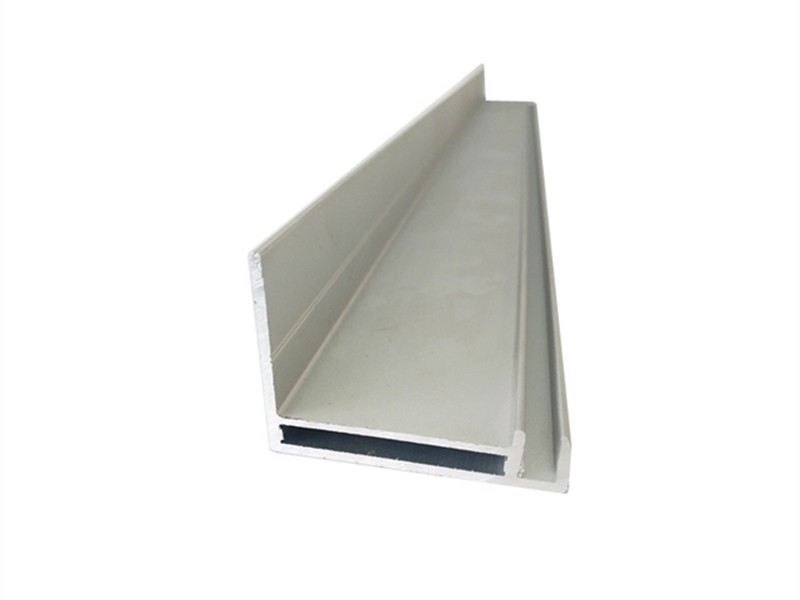

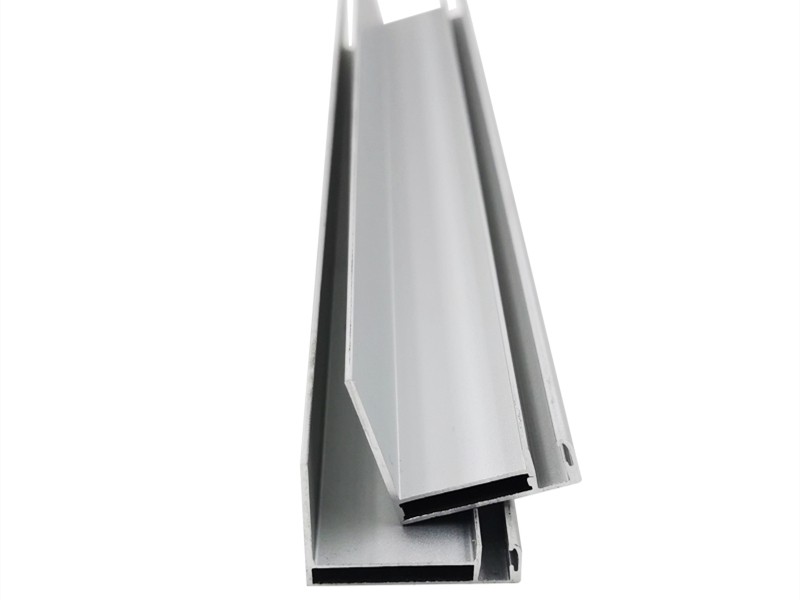

Solar panel frame is also called solar panel aluminum frame, It is the important part in assembling for Solar Panel. solar panel frame thickness 40mm,35mm,30mm is extruded aluminum frame which are used to seal and fix solar module components. It can protect the solar cell and glass out of damage and break.

Framed PV panels are better protected during transportation than frameless solar panels. So more and more thin film solar companies would love to use the frame on their new solar panel design.

Item: solar panel frame

Thickness: 40mm, 35mm, 30mm height

Type: silicon frame installed

Raw material: 6063/6005 aluminum alloy

MOQ: 1500sets

Color: black/silver/custom

Payment terms: TT or L/C

FOB price: Negotiable

Common Specifications:1640*992mm/1956*992mm



Corrosion resistance and strong oxidation resistance;

Strong strength and firmness;

Strong tensile strength;

High elasticity, rigidity and metal fatigue value;

Convenient transportation and installation, even if the surface is scratched, it will not oxidize, and does not affect performance;

It can adapt to various environments through convenient selection of different materials;

The service life is more than 20 years.

Scalability from small to large projects quickly

variable fastener punching patterns

Packaging for easy handling & component access



Alloy	Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti	Others	Al(Min)
6063	0.2-0.6	0.35	0.1	0.1	0.45-0.9	0.1	0.1	0.1	0.15	rest
6005	0.6-0.9	0.35	0.1	0.1	0.4-0.6	0.1	0.1	0.1	0.15	rest



Alloy	Temper	Thickness	T.S./σb (MPa)	Y.S/σ0.2 (MPa)	ELOG./δ%	Hardness/HW
6063	T5	≥ 0.8	≥160	≥110	≥8	≥8
6063	T6	≥ 0.8	≥205	≥180	≥8	≥10
6005	T5	≥ 0.8	≥260	≥240	≥6	≥12
6005	T6	≥ 0.8	≥270	≥250	≥6	≥14





Container Loading Capacity for General Solar Frame:

For 20 feet container;

4000-4500 sets aluminum frame for 60 cell solar panel (1640*992mm)

3500-4000 sets aluminum frame for 72 cell solar panel (1956*992mm)

For 40 feet container;

8000-8500 sets aluminum frame for 60 cell solar panel (1640*992mm)

7500-8000 sets aluminum frame for 72 cell solar panel (1956*992mm)



Why you choose Shengfa

1. Abundant Solar Frame Production Capacity

Currently our solar frame production capacity is 600,000 sets per month and 60% are exported to Korean,Japan,Thailand,Germany,Australia and Malaysia markets etc.

2. Best Quality Control

Complete quality control system on solar frame and 100% QC to keep the quality.

3. High Precision Solar Frame and Corner KeyProcessing

Equipped with advanced processing machine from Japan to keep the frame length tolerance within ±0.5mm, and and corner key length tolerance within ±0.15mm.

4. Rich Solar Frame Experiences

We have rich producing experience with worldwide customers over many solar projects.

5. One-Stop Service

From quality inspection of raw material, solar frame extrusion, aging, sandblasting anodizing, finish processing, packaging and loading

6. 24×7 Live Service Support
